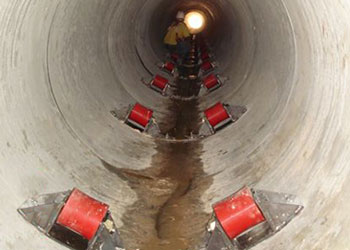

Commonly for infrastructure projects water, waste water, and gas pipelines need to be installed horizontally through a larger steel or concrete pipe. Typically once the pipe is installed the space between the 2 pipes is filled with grout creating a lifetime fixed pipe. Richmond engineering offers a heavy duty solution for horizontal pipe installation applications with our pipe band products. Where sliding plastics supports fail pipe bands make high capacity linear installations a breeze.

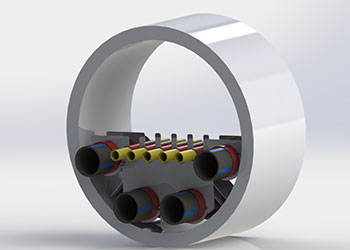

For internal pipe installation applications requiring multiples of pipe and or pipe sizes, custom solutions are often required for a safe and efficient install. This (pictured above: right) is an example of a multicore pipe installation accessory. 20 carriers were used to install 4 x 300mm HDPE pipes 4 x 110mm PE pipes and 1 x 115mm electrical cable over 60m all simultaneously through a 1650mm concrete pipe to create a fixed multicore pipeline. This is a good example of how teamwork between the engineering team and the client results in a simple efficient solution to what may seem a very difficult handling application.

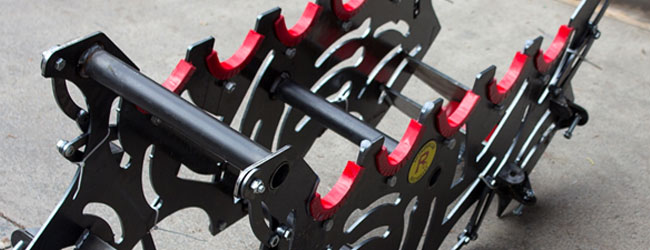

The design philosophy incorporates a rolled steel, galvanised steel or stainless steel chassis with or without a hinge (depending on application) with heavy duty rollers assembled with welded brackets. This chassis is manufactured to suit the pipe to be installed and the inside diameter of the carrier pipe, generally a concentric fit between the 2 pipes is possible. The chassis is clamped with the smaller pipe using bolts creating a strong connection.
The rollers remove sliding friction allowing the pipe to be rolled into position. This is a simple low cost heavy duty solution to this challenging application.
To date Richmond Engineering has supplied supports for many different projects.
Key standout projects:
Many, many projects over 350m single run steel pipe
500NB 9.5m wall steel pipe launched in a single run over 600m (70ton total weight)

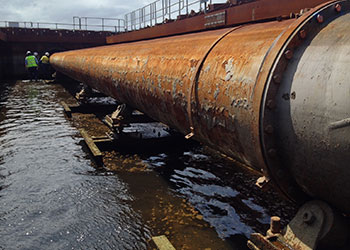

1500mm diameter 32mm wall steel pipe 300m long progressively fed into a concrete carrier pipe (345 tonns pipe weight). After installation the pipe was used for dredging sand and salt water with the supports taking the additional wet weight during dredging netting a total weight of 830 tons! After 6 months of dredging with the supports completely submerged in salt water the pipe was removed (let’s see plastic supports do this job).
Suited to heavy and extremely heavy applications, the low cost of the system also makes this the best choice for all linear pipe installation applications.
Available with or without hinge, capacity to suit the project, with or without rubber protective/non-conductive pipe wraps and in available in many different finishes. Whatever you application light weight, to heavy duty, one or multiple pipes please feel free to contact the Richmond engineering department for discussion and quote to suit your needs.
Pipeline Band Support Rollers ‐ Custom Built “In House” By Richmond
Quickly forging a reputation of design and manufacturing excellence in the Australian Pipeline Industry, Richmond Wheel and Castors are trusted to provide solutions for the most arduous and unique pipeline projects.

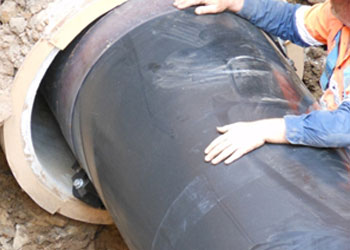

Two of Richmond’s most recent pipe roller challenges have been to provide a turn-key solution for loading a new pipeline inside an existing larger diameter pipeline. Posing a number of challenges relating to the loading process, load capacity required and lack of access for installation of roller assemblies. Richmond’s in-house design team implemented a design consisting of a band and rollers to drastically reduce friction ensuring a safe and economical process. This not only protected the internal pipes but also the external pipes but also acted as a pipe support once fitted.

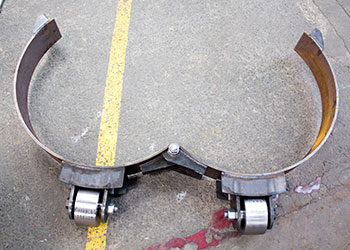

A steel band fitted to the outer of the pipe with either 2 or 3 rollers welded to this frame, provides the basis for the pipe supports and rolling mechanism all in one. The pipe bands can be fitted by securely tensioning in place and reduce the need for welding on-site. Depending on the environmental conditions, load capacity and rolling resistance or friction required, Richmond manufactures the rollers in engineered plastics such as nylon or polyurethane.

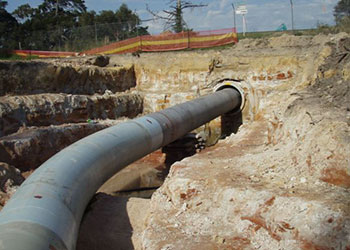

Our latest design has been used in Northcote, Victoria as an alternative to a dry sliding design on the refurbishment of a water pipeline. The scope of the project saw Richmond supply 50 pipe bands with a capacity of 900kg – each fitted with two 110mm nylon rollers. This particular project located a 1127mm pipe inside a 1350mm pipeline.
This particular Richmond design can be suited to various diameters, as we pride ourselves on our ability to conceive and deliver high performance products for the Pipeline and mining industry.
Richmond once again where called upon to provide an alternative solution to a dry sliding installation when locating a new pipeline inside an existing larger diameter pipeline. Richmond Pipe Band Rollers are essentially a steel band fitted to the outer of the pipe with either 2 or 3 rollers welded to this frame, provides the basis for the pipe supports and rolling mechanism all in one. Depending on the environmental conditions, load capacity and rolling resistance or friction required, Richmond manufactures the rollers in engineered plastics such as nylon, steel or polyurethane.

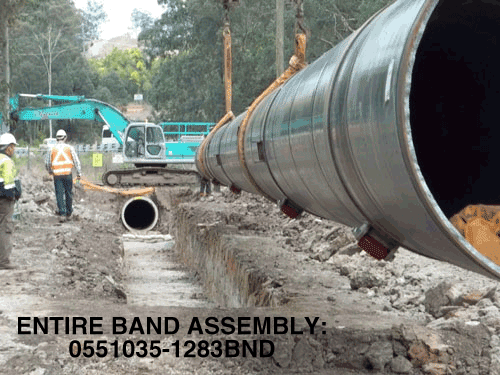

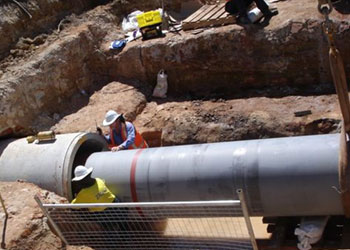

The particular project for Killard’s Excavations required four different pipeline sections of 813mm to be located into an existing 1026mm pipeline. The sections varied in length from 94m to 170m and had to negotiate a 2% grade through the Camden bypass at Narellan NSW.
In this particular instance it was typical for a 40 tonne Excavator to be used to load the pipe taking on average two and a half hours, a welder was also kept on standby all day. But with Richmond’s turnkey solution time and money were saved and most importantly the task was made simpler.
Further entrenching our position in the pipeline industry, Richmond offers extensive expertise in all applications of wheel-making for industry including: drive wheels, guide rollers or complete turnkey solutions.
