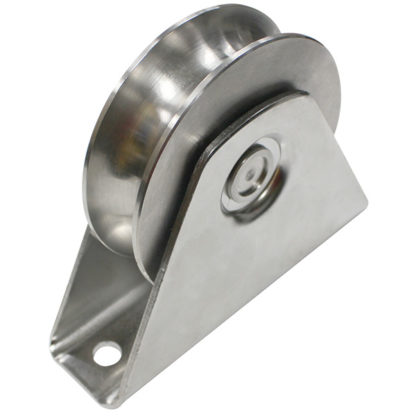

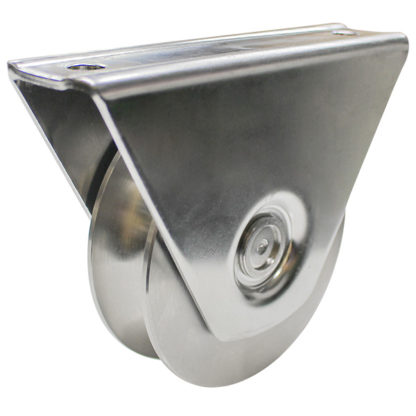

88mm Stainless Steel Bottom Mount Gate Track Wheel (GTR239)





Wheel width (A): 23mm

Bottom Gate Height (B): 96mm

Track Profile Diameter (C): 20.5mm

Wheel Outer Diameter (D): 88mm

Overall Width (E): 36mm

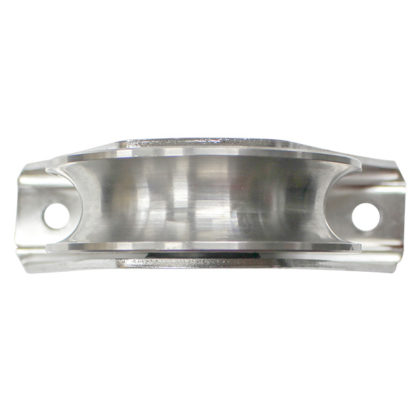

Between Hole Centers (F): 105mm

Overall Length (G): 130mm

Capacity: 250kg

Wheel Grove Diameter (D1): 70mm

Wheel Material: Stainless Steel

Frame Material: Stainless Steel

Richmond gate track wheels, used on both automatic sliding gates (electric sliding gates) and manual sliding gates, wheels are precision machined to ensure a smooth and consistent rolling action on the gate track. For the gate track to suit, see GTR010.

This Richmond gate track wheel is manufactured from 304 S/S for added corrosion protection, wheels are fitted with dual 2RS grade 440 s/s ball bearings to ensure a longer life and superior corrosion protection compared to the standard zinc plated products.

The frame of these bottom mount gate track wheels is designed to be bolted flat to the bottom of the gate. For a recessed, low profile design see our recessed gate track wheels.
